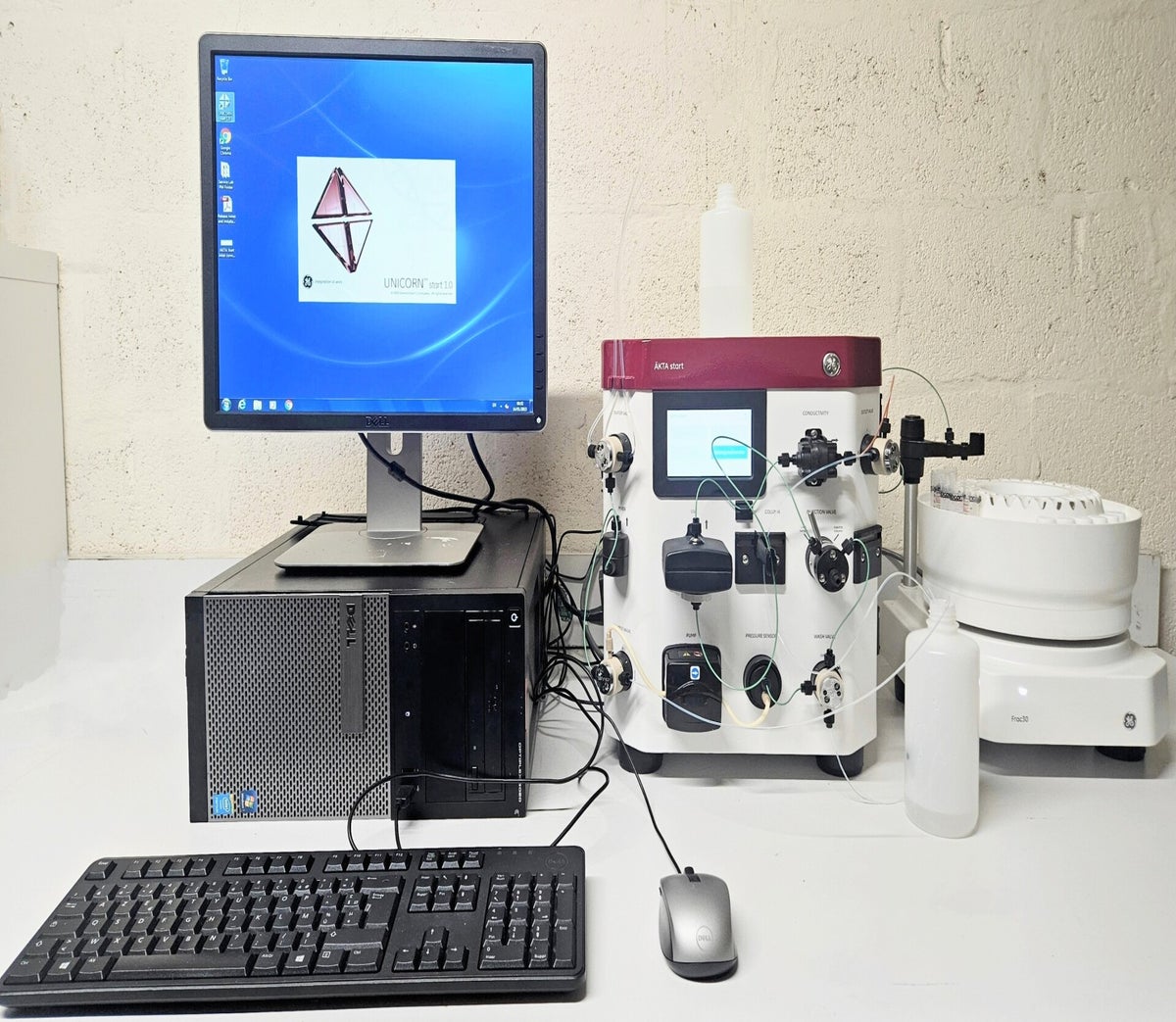

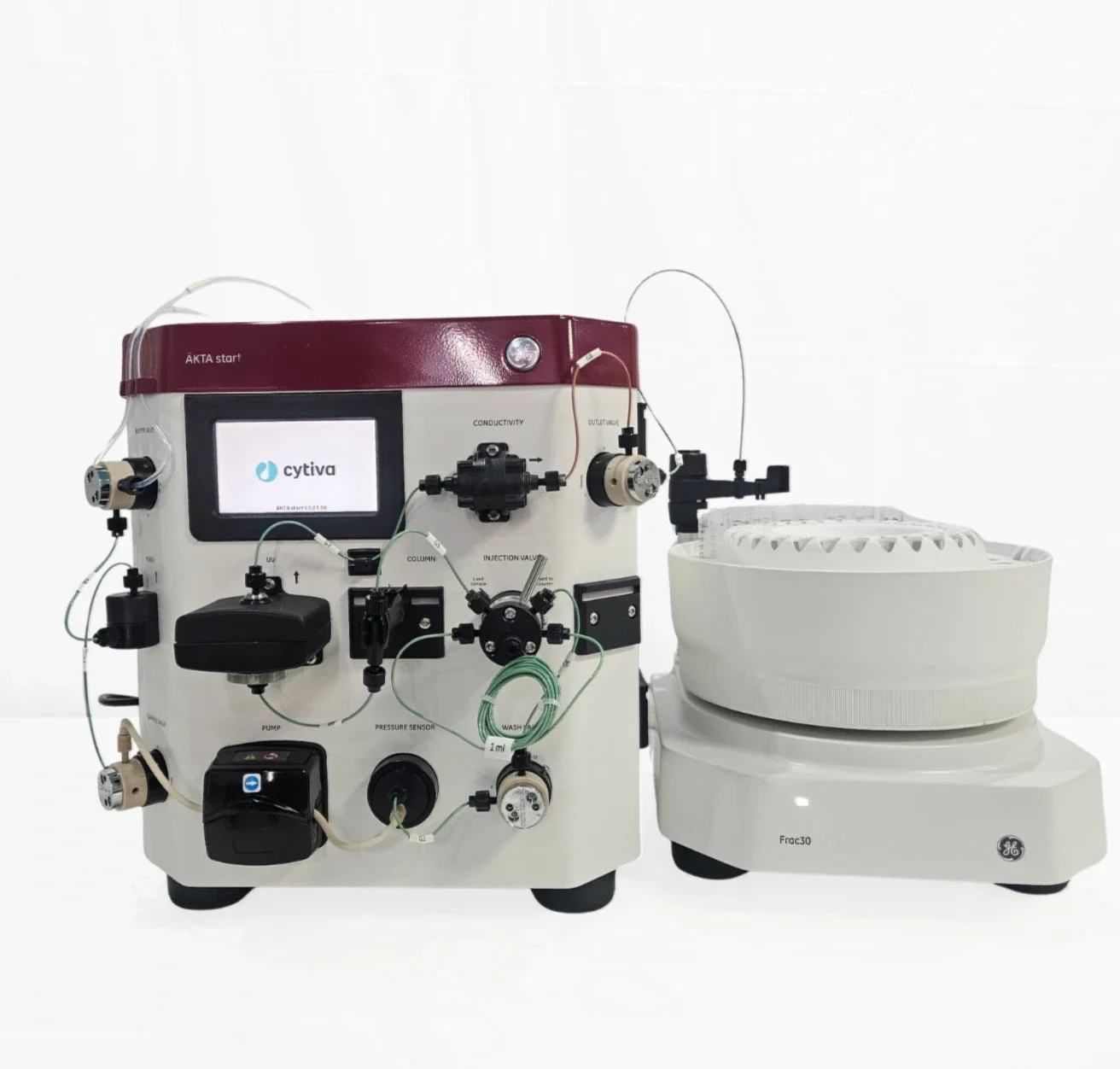

ÄKTA™ Start Protein Purification System

ÄKTA start is a laboratory-scale preparative chromatography system developed for routine protein purification applications. Designed as a self-contained platform, it features a simple flow path, intuitive operation, and an easy-to-use interface.

Part Number: 29022094

✓ Certified Refurbished
✓ Current Firmware Version
✓ Calibrated Monitors
✓ Performance Tested
✓ Verified to Manufacturers Specifications
✓ Test & Calibration Report
✓ 6 Month Warranty
+ On-Site Installation
+ Preventive Maintenance

System details

System

System: Benchtop system, external computer

Control system: Instrument display and/or UNICORN™ start

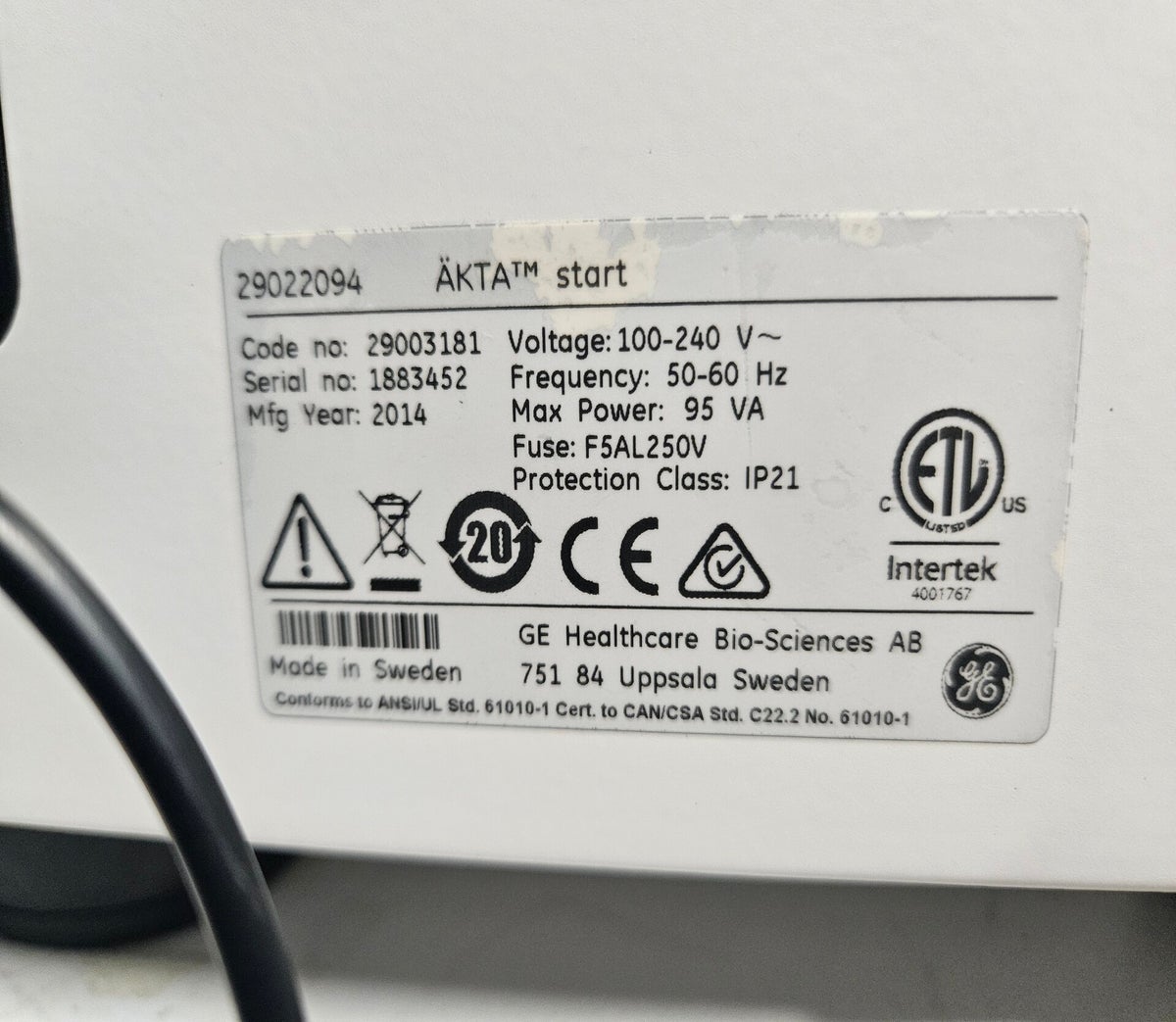

Protection class: IP 21

Voltage: 100-240 VAC

Power consumption: 95 VA

Dimensions (W × D × H): 340 × 360 × 280 mm

Weight: 8 kg

Components

Pump: Peristaltic pump

Flow rate: 0.5 to 5 ml/min (operating range) 10 ml/min (wash flow)

Viscosity: 0.6 to 5 cP

Pressure range: 0 to 5 bar (0.5 MPa, 72 psi)

Mixer: Static mixer (0.4 ml volume)

Valves: 3 ports. Buffer valve and sample valve: 2 in – 1 out Wash valve and outlet valve: 1 in – 2 out

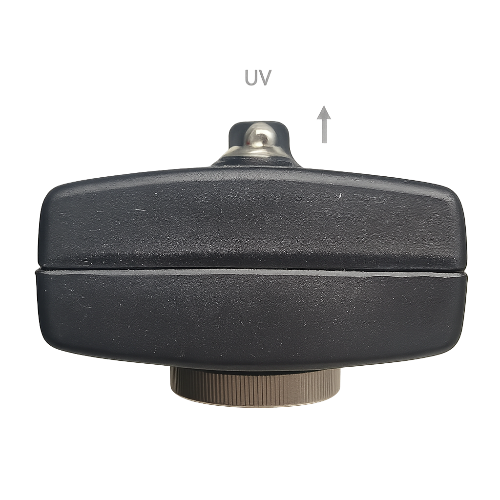

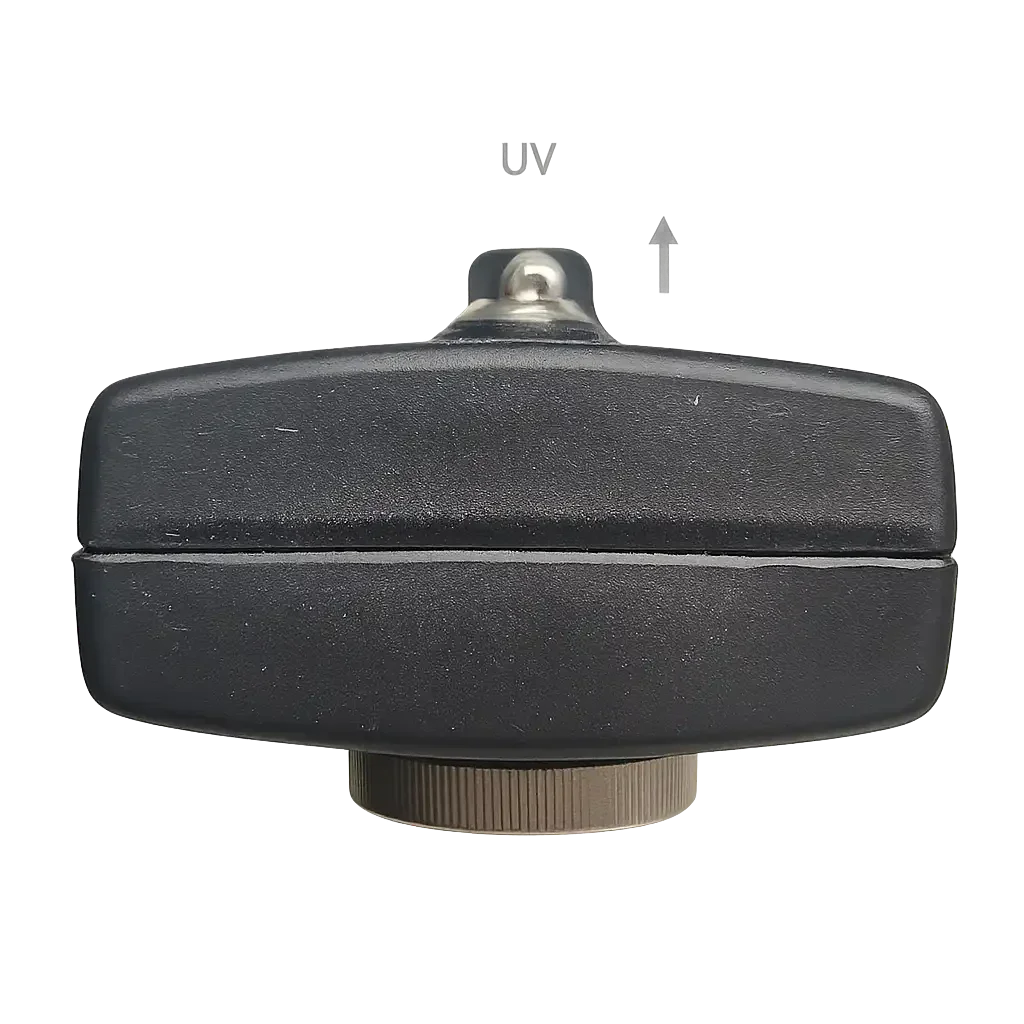

UV wavelength detection (Single): Fixed 280 nm

UV path length: 2 mm path length

Conductivity range: 0 to 300 mS/cm

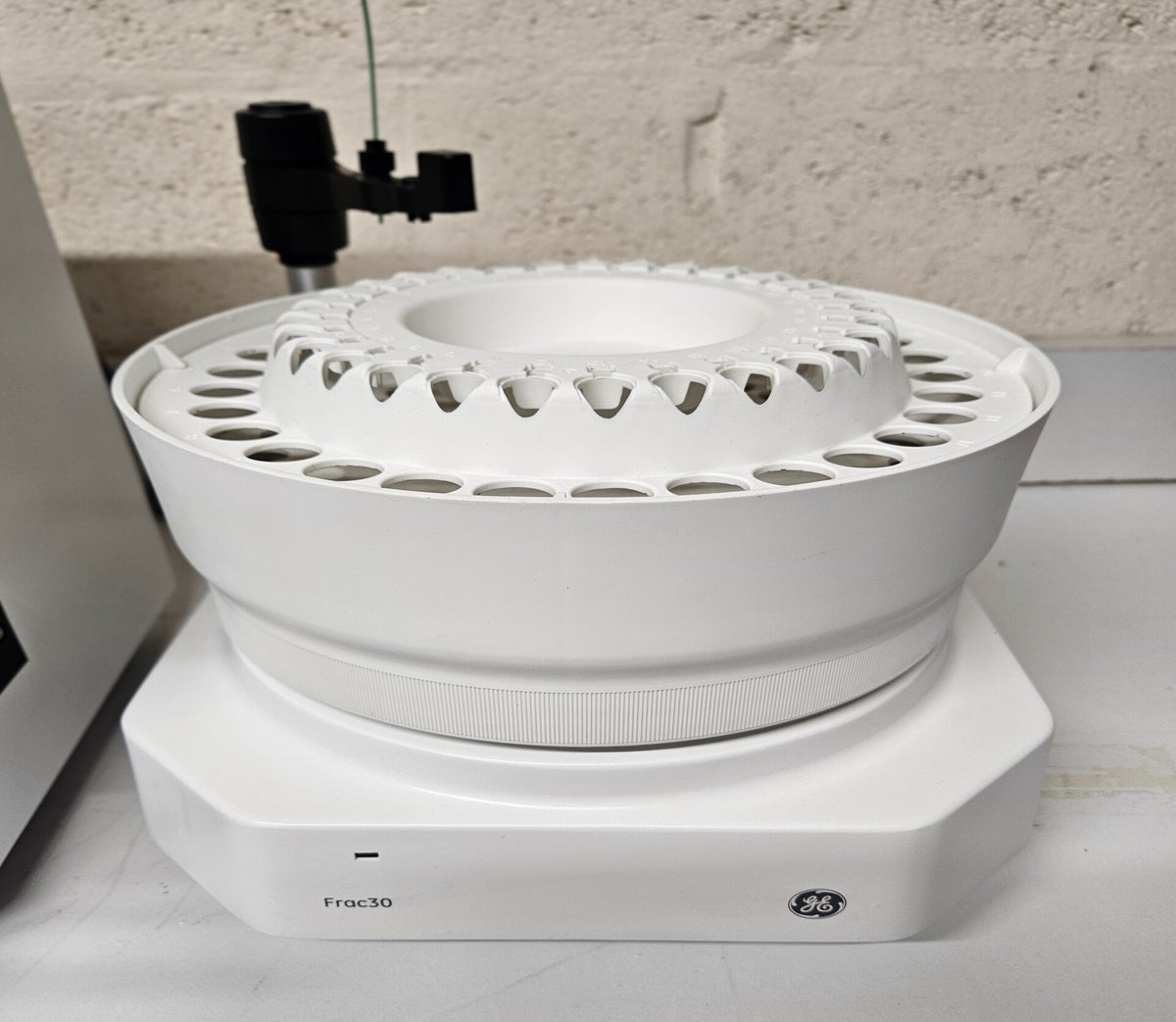

Fraction collector Frac30: 1.5 ml/2 ml microcentrifuge tubes 5 ml tubes (12 × 75 mm) 12 ml tubes (17 × 100 mm) 15 ml tubes (17 × 118 mm)

Application
  • Affinity chromatography (AC)
  • Anion exchange chromatography (AIEX)
  • Gel filtration chromatography (GF)
  • Dextran sulfate chromatography (DS)
