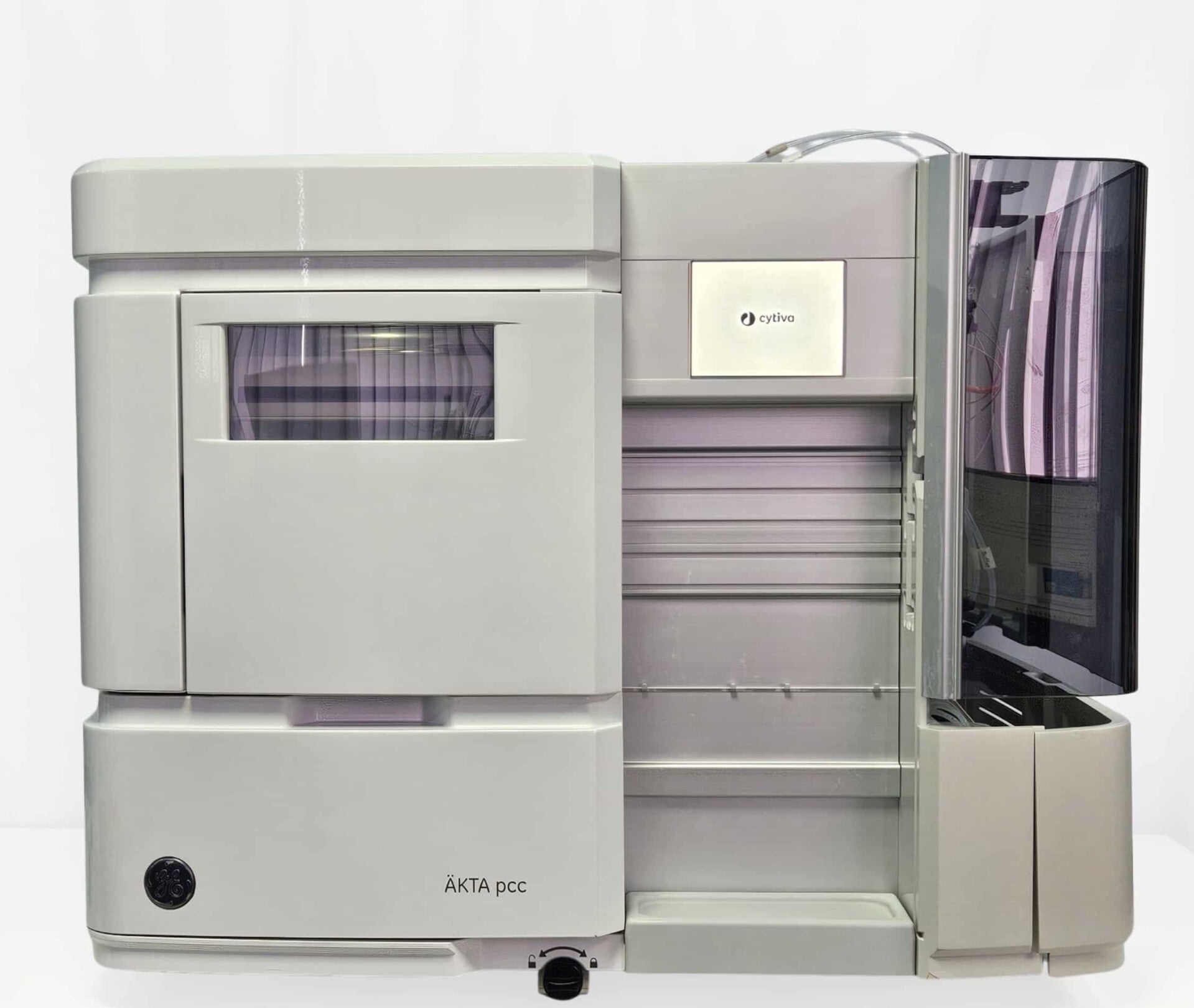

ÄKTA pcc™ Chromatography System

ÄKTA pcc™ Chromatography System

AKTA pcc is designed for continuous downstream protein purification, this PCC-based system uses a multi-column chromatography process to deliver efficient, uninterrupted operation. Its automated column-switching workflow supports continuous loading, washing, and elution, helping improve productivity, streamline processing, and minimize space requirements.

Part Number: 29457820

✓ Certified Refurbished
✓ Calibrated Monitors
✓ Performance Tested
✓ Verified to Manufacturers Specifications
✓ Test & Calibration Report
✓ Warranty provided
+ On-Site Installation
+ Preventive Maintenance

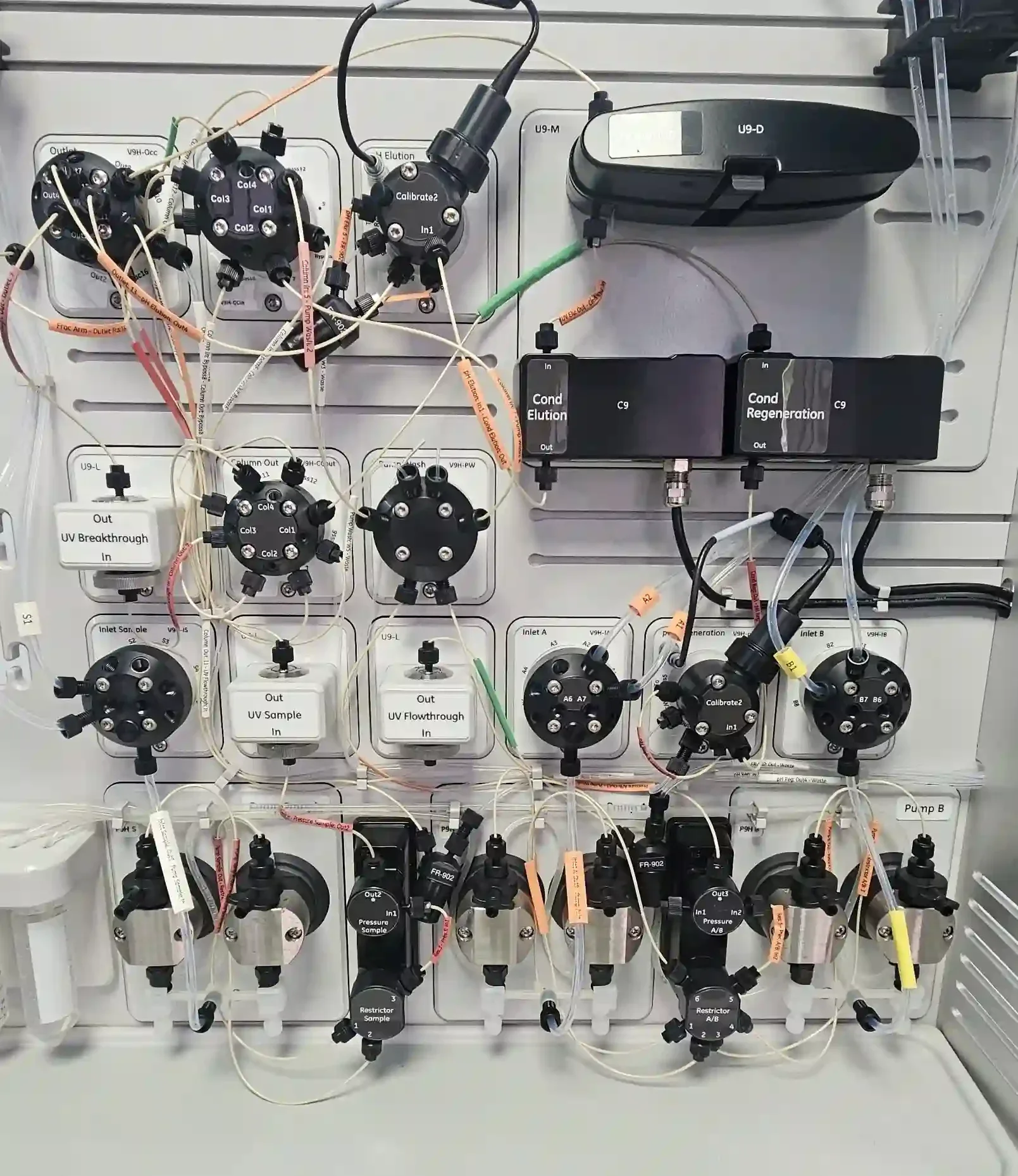

ÄKTA pcc 4C System

£POA

  • Refurbished
  • Manufacture date: 2017
  • Integrated fraction collector
  • Supplied serviced and tested

+ See details

Specification

System

System: Benchtop system, external computer

Control system: UNICORN 7 or later version

Protection class: IP 21, wet side IP 22

Voltage: 100-240 VAC

Power consumption: 800 VA

Dimensions (W × D × H):860 × 660 × 710 mm

Weight:119 kg

Components

Flow rate: 0.01 to 75 mL/min

Viscosity: 0.7 to 10 cP

Pressure range: 0 to 2 MPa (290 psi)

Inlet feed: 24 (8+8+8)

Outlet feed: 8

Valves: Inlet A, Inlet B, Inlet sample, Pump wash, Column, pH, Outlet

Column Compatibility: 26–200 mm

Number of columns: up to four columns

UV wavelength detection (Elution): Multi wavelength (3 simultaneous) 190 to 700 nm

UV wavelength detection (Single): Fixed 280 nm

UV path length: 2mm path length

Conductivity range (optional): 0.01 to 999.99 mS/cm

pH stability range (optional): 0-14 pH

Air sensors: Internal (Inlets A, B, sample)

Fraction collector: 3, 8, 15, or 50 ml tubes

Application
  • Process development
