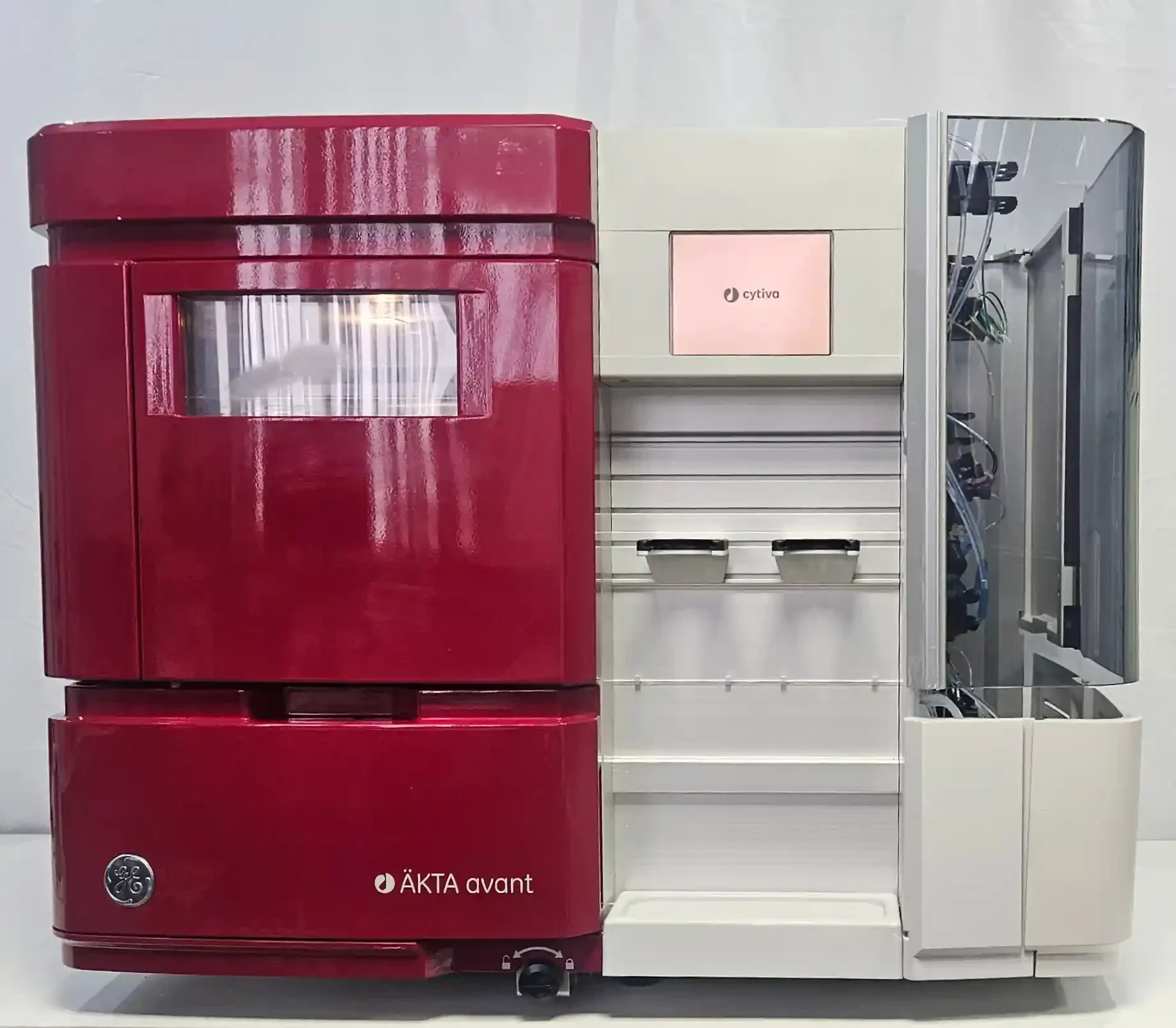

ÄKTA Avant Chromatography System

ÄKTA pcc™ Chromatography System

AKTA Avant is designed for preparative protein chromatography, supporting method development, optimisation and process scale-up. Two configurations are available to suit different applications. The AKTA Avant 25 operates at flow rates of up to 25 mL/min, making it well suited to chromatography resin evaluation, screening and method optimisation. For applications requiring increased capacity, the AKTA Avant 150 supports flow rates of up to 150 mL/min and enables methods to be transferred to larger chromatography columns as part of process scale-up.

Part Number: 28930842

✓ Certified Refurbished
✓ Calibrated Monitors
✓ Performance Tested
✓ Verified to Manufacturers Specifications
✓ Test & Calibration Report
✓ Warranty provided
+ On-Site Installation
+ Preventive Maintenance

Specification

System

System: Benchtop system, external computer

Control system: UNICORN 7 or later version

Protection class: IP 21, wet side IP 22

Voltage: 100-240 VAC

Power consumption: 800 VA

Dimensions (W × D × H):860 × 660 × 710 mm

Weight:119 kg

Components

Flow rate: ÄKTA avant 25: 0.001 to 50 ml/min, ÄKTA avant 150: 0.01 to 150 ml/min

Viscosity: 0.35–10 cP (system pump), 0.7–10 cP (sample pump)

Pressure range: ÄKTA avant 25:0 to 10 MPa (0 to 100 bar), ÄKTA avant 150: 0 to 5) MPa (0 to 50 bar)

Inlet feed: 25 (7+7+7+4)

Outlet feed: 10

Valves: Inlet A, Inlet B, Inlet Sample, Inlet Quaternary, Injection, Column, pH, Outlet

Mixer: Chamber with a magnetic stirrer

Mixer volume: 0.6, 1.4, or 5 mL (Avant 25), 1.4, 5, or 15 mL (Avant 150)

UV wavelength detection: Multi wavelength (3 simultaneous) 190 to 700 nm

Conductivity range (optional): 0.01 to 999.99 mS/cm

pH stability range (optional): 0-14 pH

Air sensors: Internal (Inlets A, B, sample)

Fraction collector: 3, 5, 8, 15, or 50 mL tubes, 24, 48, or 96-well deep-well plates, 250 mL bottles

Application
  • Process development
  • Method optimization
  • Affinity chromatography
  • Gel filtration/size exclusion chromatography
  • Ion exchange chromatography
  • Hydrophobic interaction chromatography
